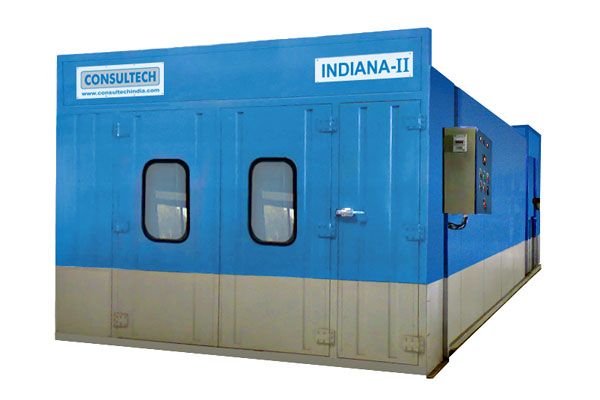

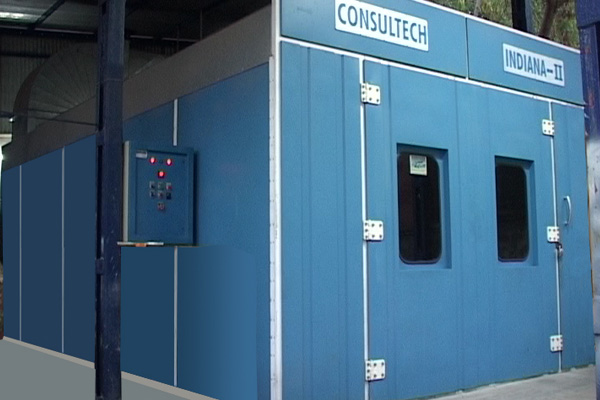

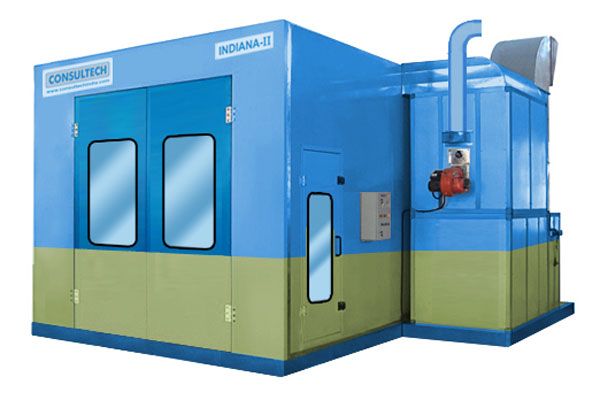

Spray Bake Booth
Consultech offer most efficient and unique design, manufacture and installation of both standardized and customized Paint Spray Bake Booth system. Standard Paint Spray Bake Booth systemare available ex-stock. Our expertise in specialized applications which may require higher efficiencies or controlled environments is unparalleled. We differentiate our custom-made product range from standard installations where the efficiency and productivity matter most.
Which is the best Paint Spray Bake Booth in the market? Of course Consultech.
In this process, both suction & exhaust damper will be in open position. The blower will work as fresh air blower & solvent laden air will be exhausted through exhaust duct.The same time heating will be off.
Both, suction & exhaust dampers will be in closed condition & the same blower will circulate the air over the Heater box inside the chamber
Features & Benefits
- Most efficient way of containing over sprayed paint.
- Chamber construction: Modular panel construction with proper insulation material (50 mm thick).

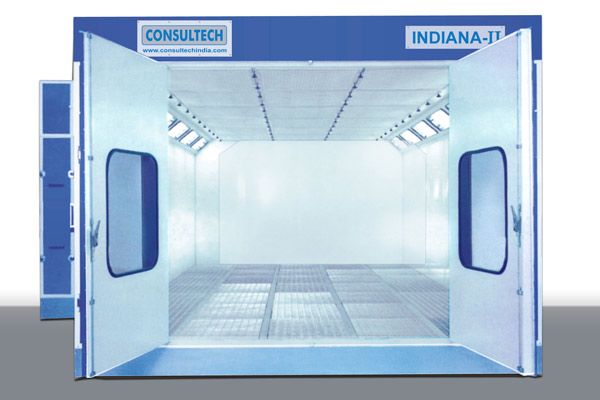

- Service door provided with wide opening for component entry & exit. View glasses provided on main door panel for good working transparency.
- Touch up as well as painting: In our design touch up painting as well as regular car / component refinishing could be processed.
- Operator comfort: Filtered air supply & exhaust system provided during painting.
- Easy operation: Painting & drying cycles are fully automatic.
- Drying cycle: Drying the surface finish, 60 C temperature for 30 minutes.
- Restricts paint over spray to a specified area.
- Excellent overspray collection maximizes environmental compliance.
- Safe: minimises risk of fire due to solvent vapours and overspray deposits.
- Designed and manufactured for severe industrial environment conditions.
- State-of-the-art workmanship.
- Superior construction: booth is constructed by nut-bolt.
- The advanced dry paint arresting filters design ensures high efficiency.
- Hundreds of installations worldwide.
- Simple maintenance.
- Ideal use for all type of paint applications
- Complies with current health and safety legislation.
|Overall Dimensions||7200 L x 5700 W x 3200 H (mm)|
|Working Dimensions||7000 L x 4000 W x 2500 H (mm)|
|Fresh Air Filter||Special bonded filter down to 5 microne|
|Service Door||700 W x 2000 H (mm)|
|Illumination||Twin type industrial tube fitting - 6 x 80 W|
|Drying Temperature||60 0C|
|Exhaust cum Hot air circulation blower||1 x 24000 M3 / Hr|
|Motor rating||1 x 10 HP|
|Thermal rating||1,18,000 Kcal / Hr.|
|Electrical supply||220-230 Volts, 50 Hz|
